Tesla™
Power Anytime, Anywhere

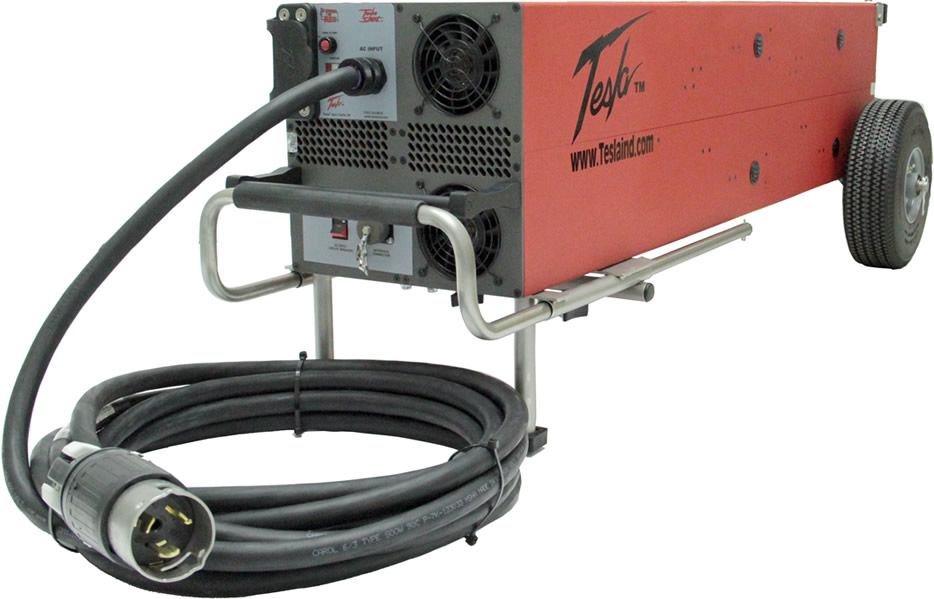

TI5200 GPU-24-PFC

TI5200-PFC

This unit provides 200 continuous amps from a single phase outlet. With 46 amps of rechargeable power available, this system will take care of your power requirements in a hangar or maintenance facility as well as in the field.

  • 3000 peak starting amps.
  • Ideal for small to medium size, fixed wing aircraft.
  • Perfect for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • System back-charges from the started vehicles’ engine in minutes.
  • 0.999% power factor.
  • <2% THD (Total Harmonic Distortion).
  • Will charge and condition vehicle batteries when unit is left connected to vehicle (AC power required).
  • One person can maneuver and operate the unit. Safe for flight, non-hazardous, dry-cell technology.

TI5200 GPU-24-PFC Specifications

DC Output: 3000 peak starting amps
200 amps continuous @ 28.5 Vdc (when plugged into ac power)
246 amp hours (6724 watt hours) with ac power
46 amp hours (1024 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from single phase 200-260 Vac / 40 Hz - 450 Hz
33.5 amps @ 208 Vac
50 amp Twist-Lock Plug (50 amp service required)
Recharging Rate: 19 minutes (from full discharge) @ 25°C
Dimensions: 49.0" L x 19.25" W x 16" H
1244.60 mm x 488.95 mm x 406.40 mm
Weight: 177 lbs (80.28 kg)
Warranty: 2 Years (3 Year Optional)
